KAOS UI Overview

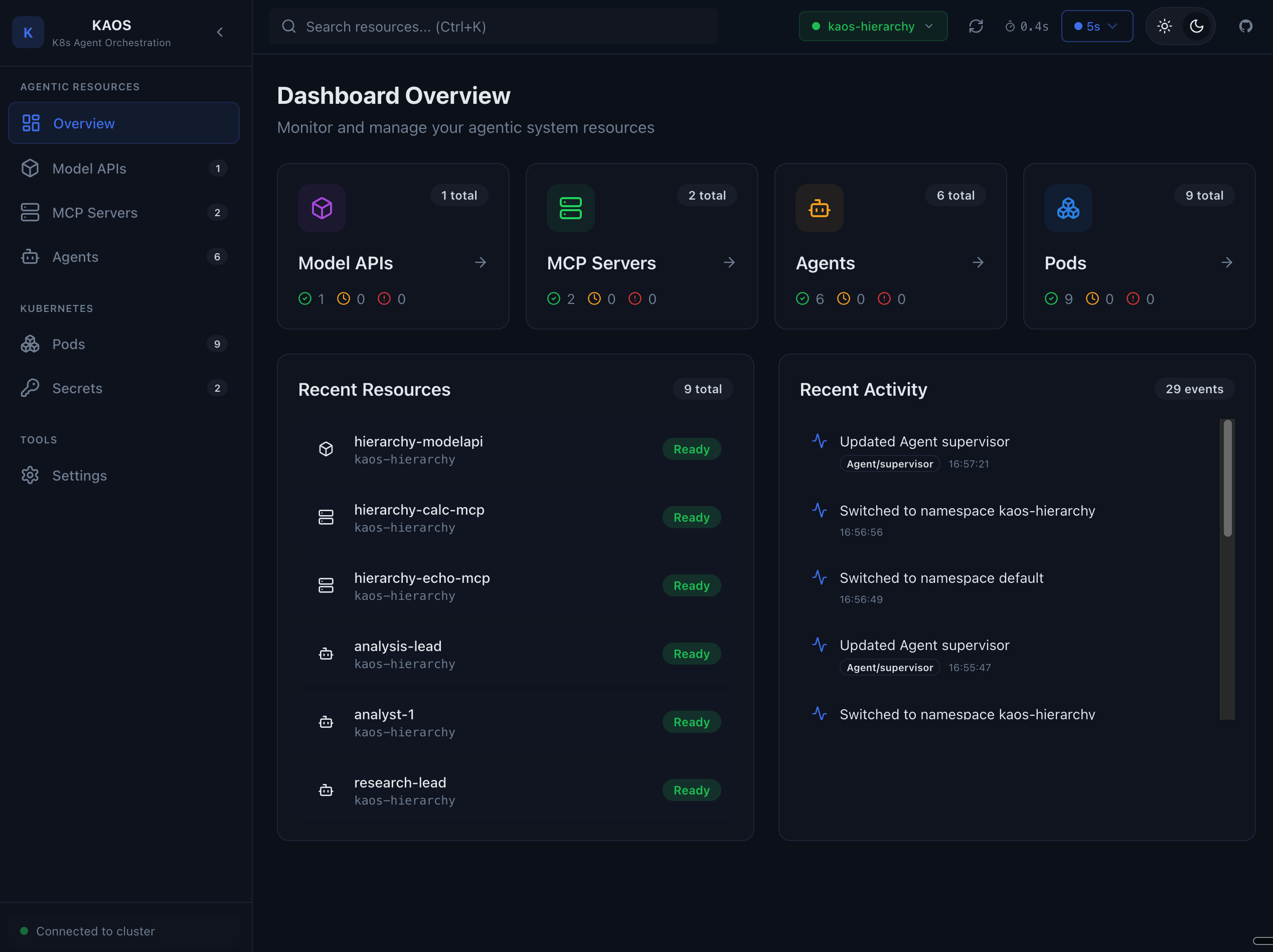

The KAOS UI is a web-based dashboard for managing and monitoring your AI agents running on Kubernetes. It provides a visual interface for viewing agents, MCP servers, model APIs, and debugging agent interactions.

Features

• Agent Management - View, create, and monitor agents
• Real-time Chat - Test agents directly from the UI
• Memory Inspector - Debug agent memory and conversation history
• MCP Tool Debugging - Test MCP server tools interactively
• Model API Testing - Verify model connectivity
• Pod Management - View logs and status of running pods
• YAML Editor - Edit resource configurations directly

Getting Started

Start the UI

Use the KAOS CLI to start the UI:

kaos ui

This will:

1. Start a local CORS proxy to your Kubernetes cluster
2. Open the KAOS UI in your default browser

Configure Connection

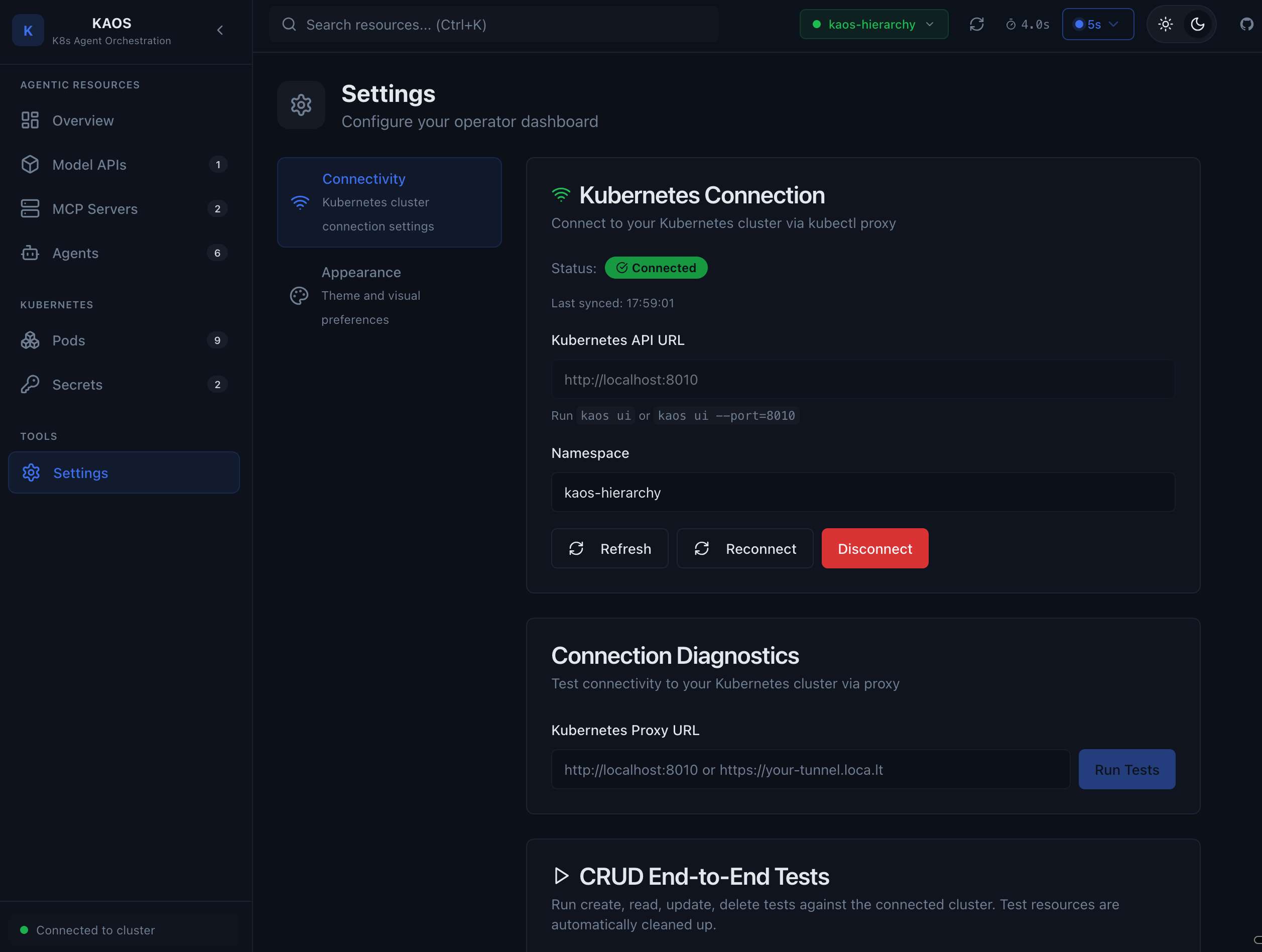

On first launch, configure the connection to your cluster:

1. Navigate to Settings > Connectivity
2. Enter your proxy URL (default: http://localhost:8080)
3. Select the namespace containing your agents
4. Click Save

Architecture

The KAOS UI is a static web application hosted on GitHub Pages. It connects to your Kubernetes cluster through a local CORS proxy started by the kaos ui command.

┌─────────────┐     ┌──────────────┐     ┌─────────────────┐
│   Browser   │────▶│  CORS Proxy  │────▶│  Kubernetes API │
│  (KAOS UI)  │     │  (localhost) │     │    (cluster)    │
└─────────────┘     └──────────────┘     └─────────────────┘

This architecture allows:

• No authentication tokens stored in the browser
• Works with any Kubernetes cluster
• Respects your existing kubeconfig and RBAC

Next Steps

• Features Guide - Detailed walkthrough of UI features
• CLI Commands - CLI command reference
• Quick Start - Deploy your first agent
